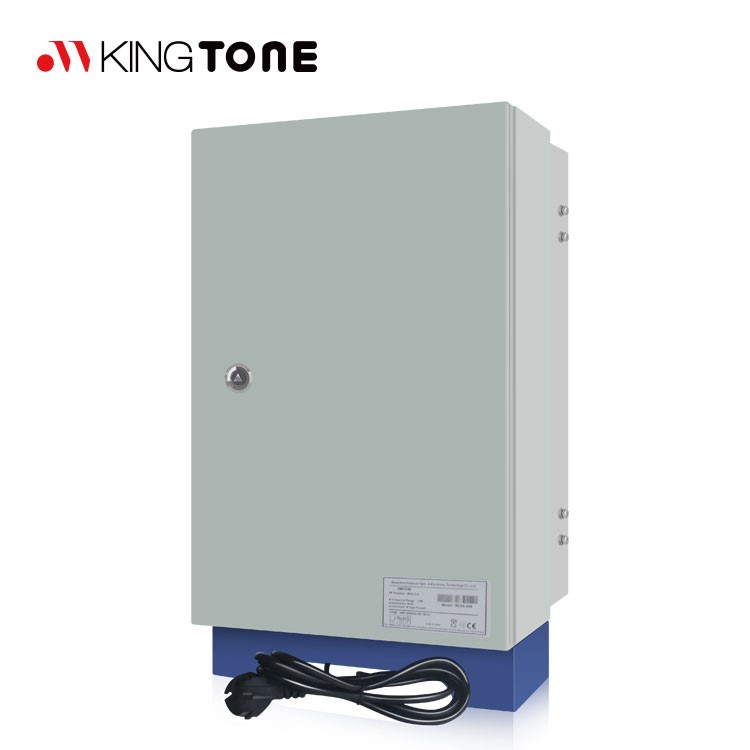

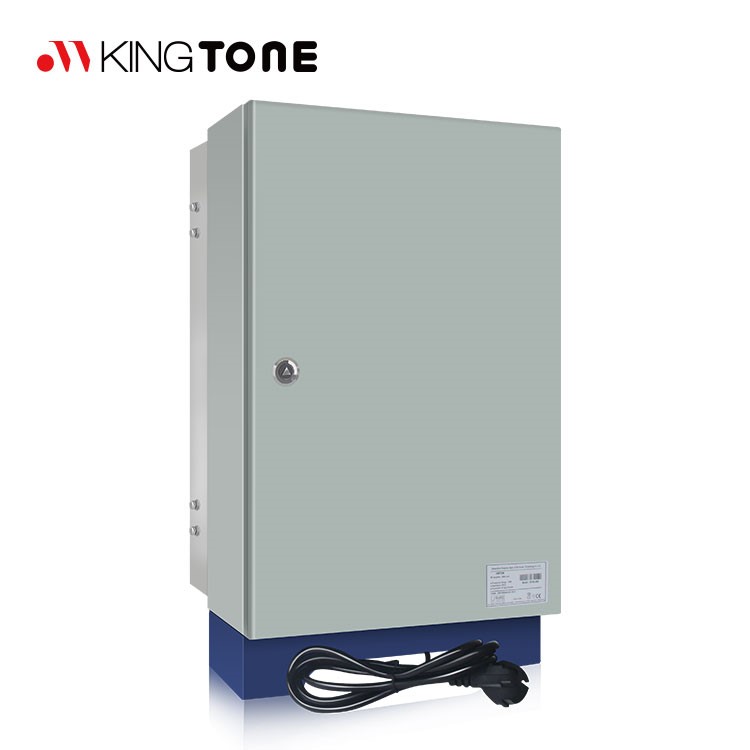

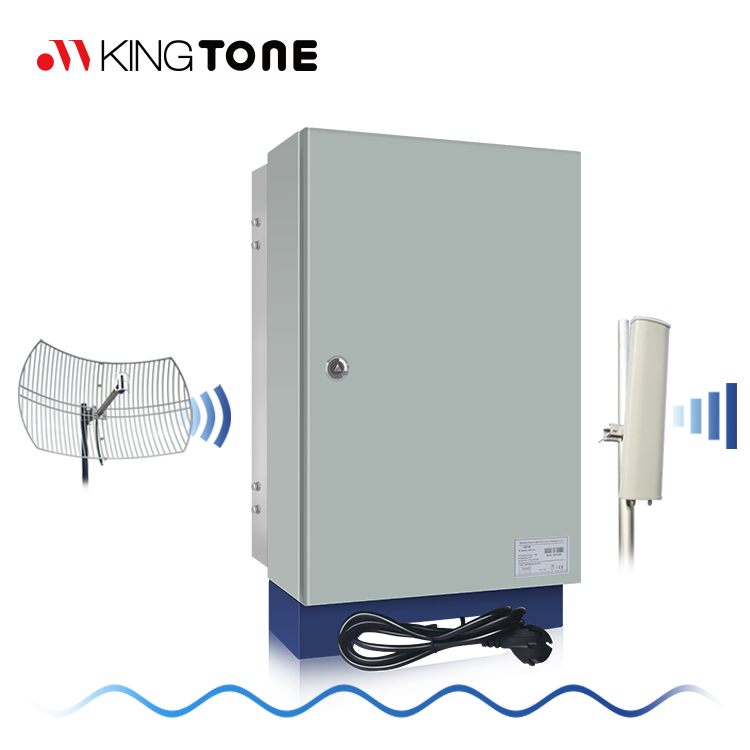

10w 2600Mhz 4g cellular amplifier Mobile signal repeater cell repetidor for rural area

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:KT-4G-2600
• Product Category:4G LTE 2600mhz repeater
• Power supply:AC 110VAC 220VDC -48VDC-24V AC 240
• Frequency:2500-2570MHz/2620-2690MHz
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty

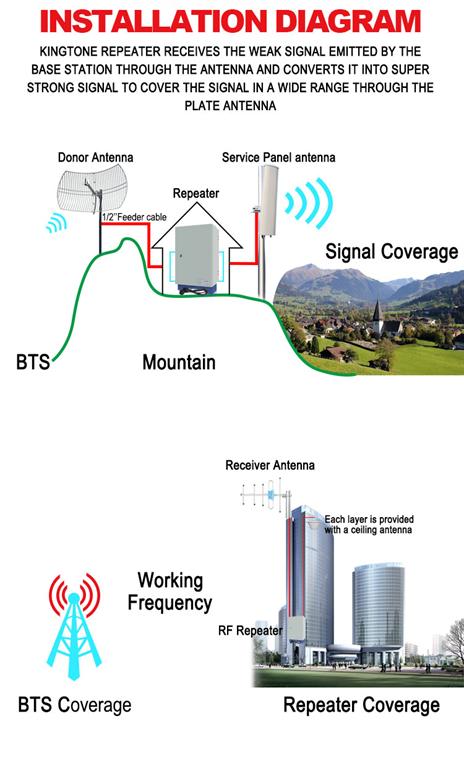

10w 2600Mhz 4g cellular amplifier Mobile signal repeater cell repetidor for rural area is a effective equipment that cover the mobile network base station covering shortage, expand the base station covering range, fill covering dead zone. It adopts two-port full-duplex design, external power, easily installation, high reliability.


Mainfeature

A.The advantages of the repeater are :
Low cost compared to a BTS
Easy installation and use
High reliability
B.The Kingtone Repeater solution also allows :
to extend the signal coverage of a BTS in urban and rural
to fill the white areas in rural and mountainous areas
to insure coverage of infrastructure such as tunnels, shopping malls,
parking garages, office buildings, hangars companies, factories, etc ...




Application&scenarios

The Kingtone Repeater solution also allows :
to extend the signal coverage of a BTS in urban and rural
to fill the white areas in rural and mountainous areas
to insure coverage of infrastructure such as tunnels, shopping malls,
parking garages, office buildings, hangars companies, factories, etc

Specification

Different units of Kingtone GSM Band Selective Repeaters varying in output power, gain and application are available:

Type

KT- 4G Repeater

4G 1800MHz

UL: 1710~1785MHz DL: 1805~1880MHz

4g 2600MHz

UL: 2500~2570MHz DL:2620~2690MHz

Output Power

33dBm

37dBm

40dBm

43dBm

Gain

80~95dBm

Gain Adjust Range

≥30dB;1dB/step

AGC Range

≥25dB

IMD3

≤-50dBc

≤-45dBc

Noise Figure

≤5dB

Ripple in Band

≤3dB

Time Delay

≤10μs

Spectrum mask

Meet ETSI specification

Spurious Emission

9KHz-1GHz:≤-36dBm/30KHz;1GHz-12.75GHz:≤-30dBm/30KHz

Port Impedance

50Ω

VSWR

≤1.5

Monitoring Mode

Local;Remote(Optional)

Power Supply

AC220V(Normal); AC110V or DC48V or Solar Powered(Optional)

Dimensions

61*41*29cm

61*41*29cm

67*47*32cm

67*47*32cm

Parts/Warranty
10w 2600Mhz 4g cellular amplifier Mobile signal repeater cell repetidor for rural area:
* Repeater -- 1pc;
* User Manual -- 1pc;
* Antennas (Customized);
