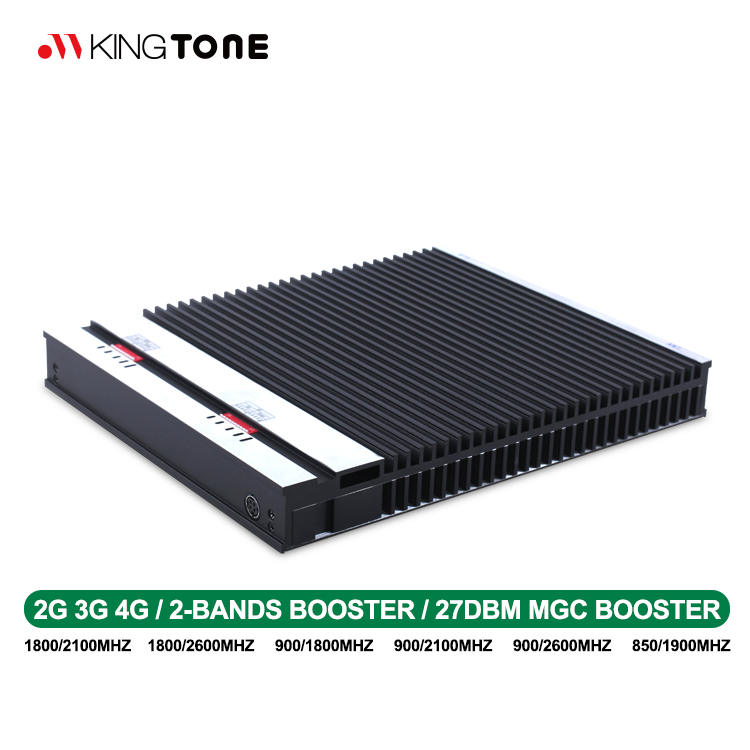

Kingtone 27dBm Indoor Cell Phone Network Amplifier Coverage 2100/2600MHz Dual Band Signal Booster 2G 3G 4G 5G for home, office

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:KT-P27-2100/2600
• Product Category:Dual Band Booster
• Power supply:
• Frequency:
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty

Dual band repeater is to support any two mobile band existing in the world to help end users to improve mobile signals for much better phone call quality and smoother data transmission. It is designed to support coverage area max can up to 2000 square meters with proper engineering.

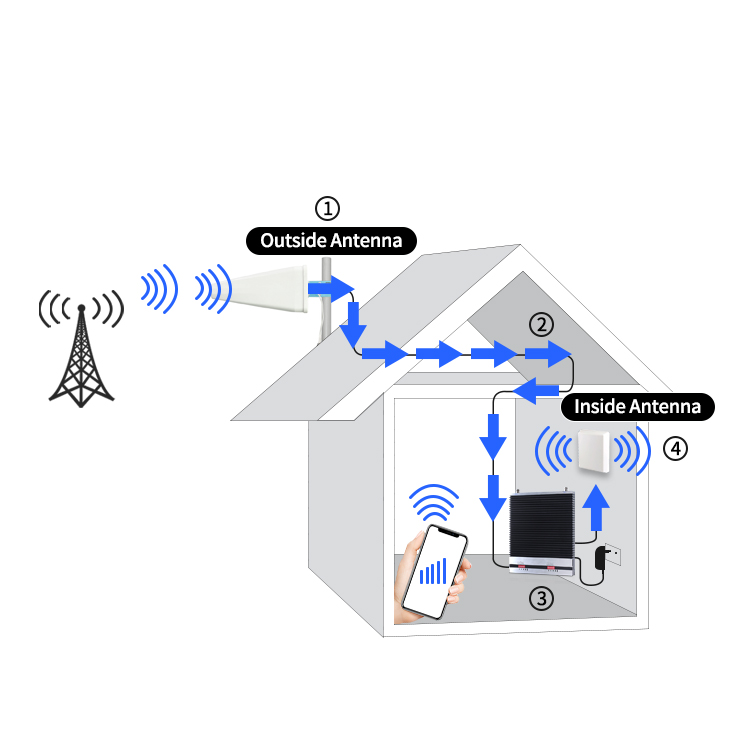

A cell phone signal booster (also known as cellular repeater or amplifier) is a device that boosts cell phone signals to and from your mobile phone whether at home or office.
It does this by taking the existing cellular signal, amplifying it, and then broadcasting to an area in need of better reception.
If you're experiencing dropped calls, slow or lost internet connection, stuck text messages, poor voice quality, weak coverage, low bars, and other cell phone reception problems, a cell phone signal booster is the best solution that produces definite results.


Mainfeature

Kingtone Dual Band Signal Booster Features:

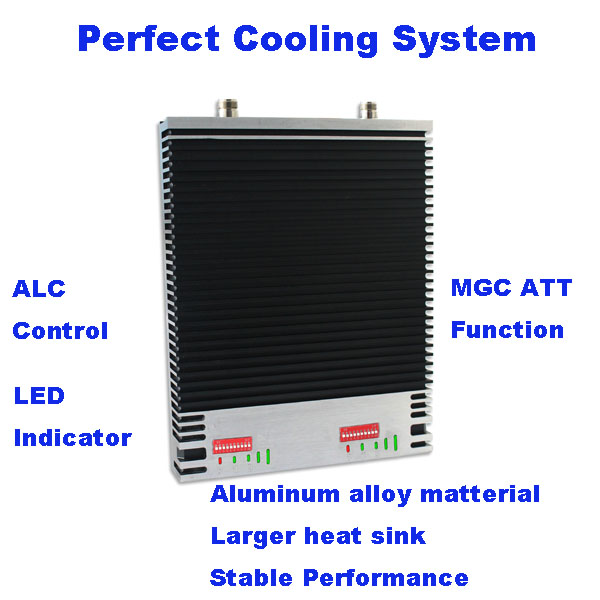

1.With unique appearance design, have good cooling function
2.With MGC function,(Manual Gain Control), Customer can adjust the Gain as needed ;
3.With DL signal LED display, help to install the outdoor antenna at the best state;
4.With AGC and ALC, make repeater work stable .
5.PCB with isolation function ,make UL and DL signal not influence each other,
6.Low intermodulation, high Gain ,stable Output power



Application&scenarios

Specification
Specification of Kingtone 27dBm Dual Band Mobile Signal Booster:


Electrical specification

Uplink

Downlink

Frequency Range

GSM900 + WCDMA/3G2100mhz

890-915 MHz

1920-1980 MHz

935-960 MHz

2110-2170 MHz

GSM900EGSM+DCS/LTE1800mhz

GSM900 +LTE 800

880-915 MHz

1710-1785 MHz

925-960 MHz

1805-1880 MHz

DCS/LTE1800+WCDMA 2100mhz

1710-1785 MHz 1920-1980 MHz

1805-1880 MHz

2110-2170 MHz

CDMA850+PCS1900mhz

824-849mhz

1850-1910 MHz

869-894mhz

1930-1990 MHz

LTE2600+WCDMA 2100mhz

1920-1980 MHz

2500-2570MHz

2110-2170 MHz

2620-2690MHz

CDMA850 +3G 2100mhz

824-849mhz

1920-1980 MHz

869-894mhz

2110-2170 MHz

DCS/LTE1800+4G LTE 2600mhz

1710-1785 MHz 2500-2570 MHz

1805-1880 MHz

2620-2690 MHz

Max .Gain

72dB

75dB

Max .Output Power

24dBm

27dBm

MGC ( Step Attenuation )

31dB / 1dB step

Automatic Level Control

20dB

Gain Flatness

GSM & CDMA

Tpy≤ 6dB(P-P); DCS,PCS ≤ 8dB(P-P)

WCDMA

≤ 2dB/ 3.84MHz,Full Band ≤ 5dB(P-P)

Noise Figure

5dB

VSWR

≤ 2.0

Group Delay

≤ 1.5μs

Frequency stability

≤ 0.01ppm

Spurious Emission &
Output inter-modulation

GSM Meet ETSI TS 151 026 V 6.1.0

WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 )

CDMA Meet IS95 & CDMA2000

WCDMA System

Spurious Emission Mask

Meet 3GPP TS 25.143 ( V 6.2.0 )

Modulation Accuracy

≤ 12.5%

Peak Code Domain Error

≤ -35dB@Spreading Factor 256

CDMA System

Rho

ρ > 0.980

ACPR

Meet IS95 & CDMA2000

Mechanical Specifications

Standard

I /O Port

N-Female

Impedance

50 ohm

Operating Temperature

-25ºC~+55ºC

Environment Conditions

IP40

Dimensions

220x320x40mm

Weight

2.00Kg

Power Supply

Input AC90-264V,output DC 5V / 6A

LED Alarm

Standard

Uplink signal LED

Be lighted when there is phone calling

LCD Display

Power supply LCD lighted

Parts/Warranty

Country of Origin

China

Port of Dispatch

Quanzhou

Production Capacity

1000pcs/month

Date of Delivery

Within 3-5 working days after received payment inform

MOQ

10pcs

Warranty

2years

Pacakge

1pcs/box; 5pcs/carton

Country of Origin

China
