43dBm GSM&DCS 900&1800 dual band ICS wide band mobile signal Repeater

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:gsm&dcs repeater
• Product Category:ICS Repeater
• Power supply:AC 110VAC 220VDC -48VDC-24V
• Frequency:890-915MHz/935-960MHz1710-1785MHz/1805-1880MHz
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty

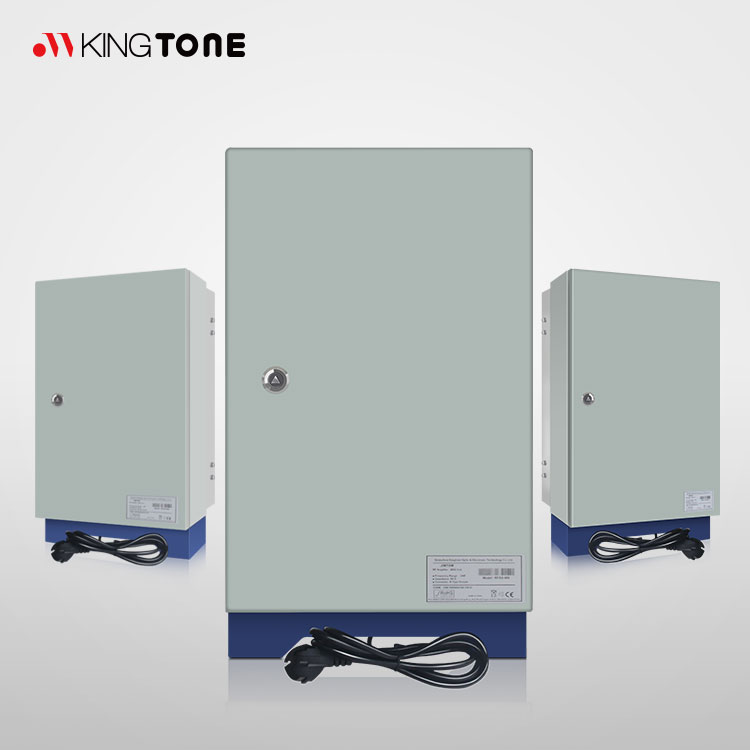

43dBm GSM&DCS 900&1800 dual band ICS wide band Repeater
Kingtone GSM ICS Repeater (Interference Cancellation System) is a new kind of single-band RF repeater that can automatically detect and cancel the interference signals caused by oscillation of RF feedback between the Donor and Coverage Antennas in real time by adopting DSP (Digital Signal Processing) technology. It can continuously and stably cancel the interference signals and be adapted to any changes in the surrounding RF environment (including fixed and mobile objects)



Mainfeature

Technical features of ICS repeater
◇ Waterproof chassis suitable for indoor and outdoor service;
◇Real-time cancellation of interference signal (incl. multi-path fading, feedback signal);
◇ ICS function to prevent self-oscillation, Enhance gain and coverage range, and reduce isolation requirement between donor antenna and coverage antenna;
◇ High selectivity digital band filter eliminate out of band interference ;

◇ Plug and play,  Easy to install.

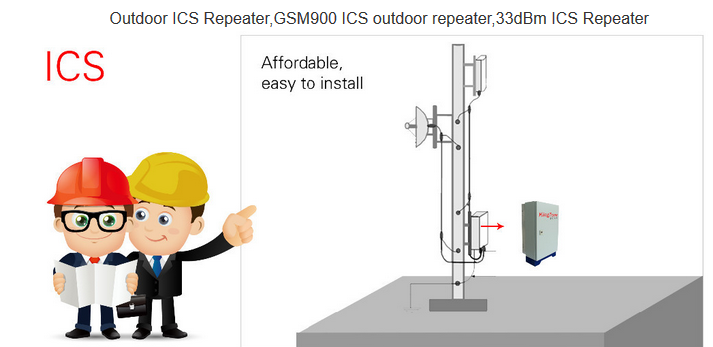

Application&scenarios

ICS Repeater Applications
    To expand signal coverage of fill signal blind area where signal is weak
or unavailable.
   Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
   Indoor: Hotels, Exhibition Centers, Basements, Shopping
Malls, Offices, Packing Lots etc.
It is mainly applicable to such case:
    The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than ‐70dBm;
    And can meet the requirement of antenna isolation to avoid self‐oscillation.





Specification

Items

Specification

Uplink

Downlink

Working Frequency

895-915 MHz

940-960 MHz

1770-1785MHz

1865-1880MHz

 Band Width

GSM

20MHz

20MHz

DCS

15Mhz

15Mhz

Output Power

37±1dBm

43±1dBm

ALC

≥10dB

Max.Gain

90±3 dB

Gain Adjustment Range

≥30dB

Gain Adjustable Linear

0~10 dB

±1.0dB

10~20 dB

±1.0dB

>20 dB

±1.5dB

Gain Control Step

1 dB / Step

In Band Ripple

3.0dB

Noise Figure

5dB

Frequency Error

≤5dB

Gain Control Step

Single Unit not exceed 6.1°RMS & 24.5°peak;

System not exceed 7°RMS & 28°peak。

Spurious Emission

Working In-band

≤-25Bm/30 kHz(Gain≤95dB)

Working Out-band

9KHz-1GHz: ≤-36dBm/30KHz

1GHz-12.75GHz: ≤-30dBm/30KHz

Intermodulation Attenuation

Working In-band

≤-45dBc/30KHz

≤-45dBc/30KHz

Working Out-band

9KHz-1GHz: ≤-36dBm/30KHz

1GHz-12.75GHz: ≤-30dBm/30KHz

Mute & Noise Control Range

Adjustable

System Delay

≤12 us

VSWR

≤1.5

Ambient Temperature

-15℃-55℃

Ambient Humidity

≤95%(no dew)

Power Supply

DC +24V±10V

Protection Class

IP65

Dimensions

90x60x42cm

Weight

48kg

Parts/Warranty
1 year warranty for repeater , 6month for accessories .
