    LTE FDD Pico ICS Repeater

    Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
    • mode:LISI218518/LISI188518
    • Product Category:FDD-LTE Repeater
    • Power supply:AC 110VAC 220VDC -48V
    • Frequency:890-915MHz/935-960MHz1710-1785MHz/1805-1880MHz1850-1910MHz/1930-1990MHz1920-1980MHz/2110~2170MHz
    • Products Details
    • Company Profile
    • Introduction
    • Mainfeature
    • Application&scenarios
    • Specification
    • Parts/Warranty

    JIMTOM® LTE FDD Pico ICS Repeater provides the most cost-effective solution to improve user experience of high quality LTE access in indoor environment. Equipping innovative plug-and-play enabling technologies, general users are able to easily install by themselves without any professional skill.

    Mainfeature

    Significant Features

    l Plug-and-Play

    l Build-in Donor and Service Antenna(gain: 5dBi)

    l 30dB Adaptive Echo Interference Cancellation

    l 85dB Gain with JIMTOM® Cognitive Auto Power Level Control

    l Band-based Power/Gain Configuration and Control



    Advantage:

    l Low Power Consumption

    l Light Weight

    l No Fan Inside

    l High Gain

    l Small Dimension

    l Directly plug external antenna in MS or BS antenna port and internal antenna will be disabled

    l It’s really high price/performance ratio

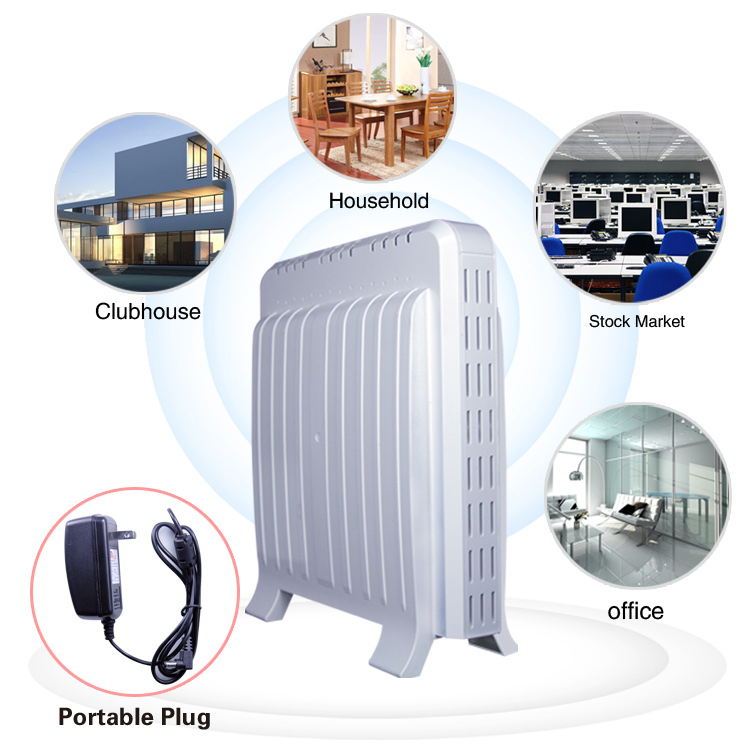

    Application Scenarios

    No professional configuration required but just Plug and Play, JIMTOM® LTEFDD Pico ICS Repeater is a quick solution to extend LTE signal coverage to small and medium size indoor environmentsuch as houses, hotels, hot spots, shops, offices, meeting rooms, apartments, and so on. Software Programmable Channel Bandwidth feature facilitates the scalable LTE operating bandwidth for the LTE FDD operators. 30dB Adaptive Echo Interference Cancellation with JIMTOM® Cognitive Auto Power Level Control makes JIMTOM® LTEFDD Pico ICS Repeater able to adapt to the time-variant isolation environment and further provides the optimized signal coverageall the time.





    Application&scenarios

    Specification

    Item

    Specification

    System

    LTE2100/LTE1800

    Frequency Range (Customized)

    Uplink (MHz)

    Compliant to 3GPP Band Definition(customized by request)

    Downlink (MHz)

    Compliant to 3GPP Band Definition(customized by request)

    UL/DL Total Output Power

    UL³+13dBm/DL ³+13dBm, Settable

    Supported Bandwidth

    Uplink

    5MHz, 10MHz, 15MHz, 20MHz Programmable in 20MHz Pass Band

    Downlink

    5MHz, 10MHz, 15MHz, 20MHz Programmable in 20MHz Pass Band

    Max. Gain

    External Donor Antenna

    85dB, Settable

    Build-in Donor Antenna

    70dB, Settable

    AGC Control Range

    30dB

    Gain Control Range

    30dB (0.5dB/Step)

    Out of Band Gain

    3GPP TS 36.106

    Gain Flatness

    ≤ 3dB (peak-to-peak)

    Error Vector Magnitude(EVM)

    ≤ 8%

    Interference Cancellation

    ³30dB

    SpuriousEmissions

    3GPP TS 36.106

    Input/Output Inter-modulation

    3GPP TS 36.106

    Adjacent Channel Rejection Ratio

    3GPP TS 36.106

    Noise Figure

    ≤5dB (Max. gain)

    Group Delay

    ≤4.5µs

    Operating Temperature Range

    -30°C~ +55°C

    Relative Humidity

    95%

    Power Supply

    90~240ACV, 50/60Hz

    Power Consumption

    ≤ 12W

    Standard Compliance

    3GPP TS 36.143、EN 60950、ETSI EN 301 489-1、ETSI EN 301 908-11

    VSWR

    ≤ 1.8

    RF Connector

    SMA Female(Switch) for External Antenna Extension

    PC Control Interface

    USB

    LED Indicator

    Input RSSI, AGC Alarm, Isolation Alarm, Power On, Sleep,

    Output Power

    Dimensions

    189mm x 170mm x 67mm

    Weight

    <1.2KG

    Note: Specification subject to change without notice



    Parts/Warranty
    1 year
