2W IDEN800 +33dBm Band Selective Repeater

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:KT-IRP-B15-P33-B
• Product Category:IDEN 800mhz Repeater
• Power supply:AC 110VAC 220VDC -48V
• Frequency:806 – 821MHz/851 - 866MHz
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty

2W IDEN800 +33dBm Band Selective Repeater
Kingtone Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low‐power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.

Mainfeature

Main Features
◇ High linearity PA; High system gain
◇ Intelligent ALC technology
◇ Full duplex and high isolation
◇ Sharp filter curve ◇ Automatic Operation convenient operation
◇ Modular design ease to maintain
◇ Remote control/monitor/alarm via RF MODEM or Ethernet
◇ IP65 chassis design for both indoor and outdoor application

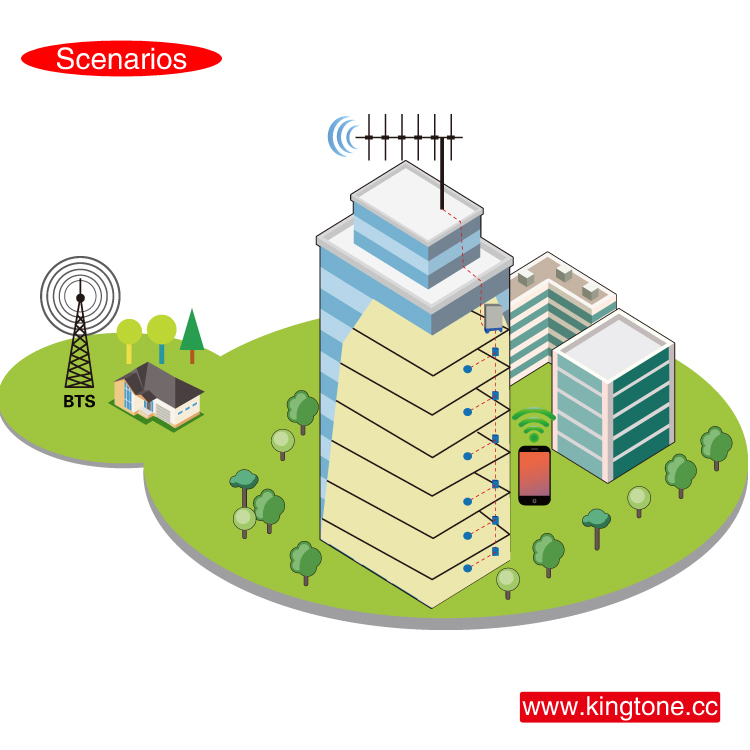

Application&scenarios

Applications
To expand signal coverage of fill signal blind area where signal is weak or unavailable. Outdoor: Airport, Tourism Region, Golf Course, Tunnel, Factory, Mining District, Village etc. Indoor: Hotel, Exhibition Center, Basement, Shopping Mall, Office, Packing Lot etc. It is mainly applicable to such case: The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than ‐70dBm; And can meet the requirement of antenna isolation to avoid self‐oscillation. Dimensions and weight Dimensions(package size): 530mm*310mm*164mm Weight: N.W.17KG G.W.19KG

Specification


Technical Specifications

Items

Testing Condition

Specification

Meno

Uplink

Downlink

Working Frequency(MHz)

Nominal Frequency

806– 821MHz

851 - 866MHz



Bandwidth

Nominal Band

15MHz



Gain(dB)

Nominal Output Power-5dB

95±3



Output Power (dBm)

GSM modulating signal

33

33



ALC (dBm)

Input Signal add 20dB

Po≤±1



Noise Figure (dB)

Working in-bandMax. Gain

≤5



Ripple in-band (dB)

Nominal Output Power -5dB

≤3



Frequency Tolerance (ppm)

Nominal Output Power

≤0.05



Time Delay (us)

Working in-band

≤5



Gain Adjustment Step (dB)

Nominal Output Power -5dB

1dB



Gain Adjustment Range(dB)

Nominal Output Power -5dB

≥30



Gain Adjustable Linear(dB)

10dB

Nominal Output Power -5dB

±1.0



20dB

Nominal Output Power -5dB

±1.0



30dB

Nominal Output Power -5dB

±1.5



Out of Band Gain

±400KHz

Nominal Output Power -5dB

65



±600KHz

Nominal Output Power -5dB

55



±1MHz

Nominal Output Power -5dB

45



±5MHz

Nominal Output Power -5dB

35



Inter-modulation Attenuation (dBc)

Working in-band

≤-45



Spurious Emission(dBm)

9kHz-1GHz

BW:30KHz

≤-36

≤-36



1GHz-12.75GHz

BW:30KHz

≤-30

≤-30



VSWR

BS/MS Port

1.5



I/O Port

N-Female



Impedance

50ohm



Operating Temperature

-25°C ~+55°C



Relative Humidity

Max. 95%



MTBF

Min. 100000 hours



Power Supply

DC-48V/AC220V(50Hz)/AC110V(60Hz)( ±15%)



Remote Monitoring Function

Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power



Remote Control Module

RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery






































Parts/Warranty
1year warranty for equipment ,6month for accessories
