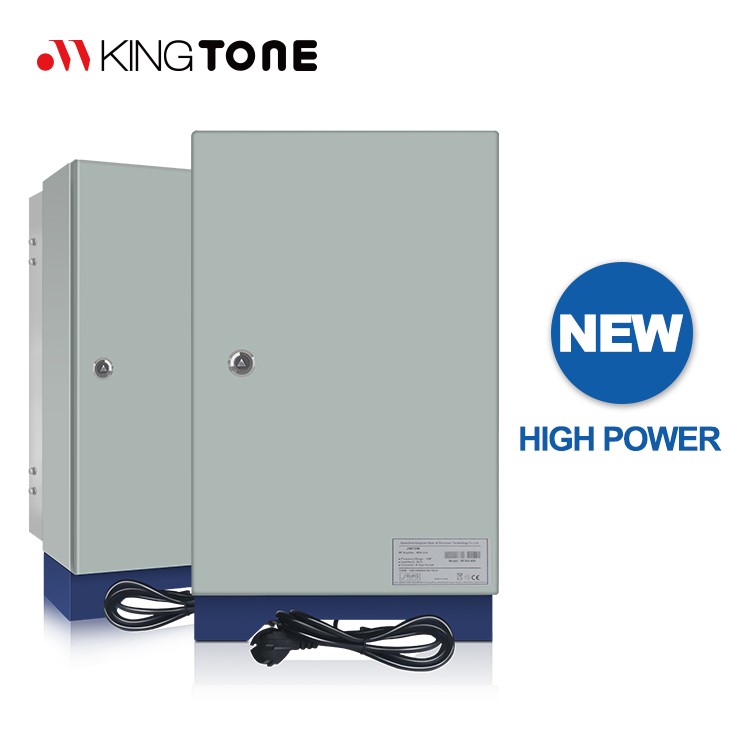

    VHF 10W Bi-Directional Amplifier

    Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
    • mode:VHF 10W Bi-Directional Amplifier
    • Product Category:VHF/UHF Repeater
    • Power supply:AC 110VAC 220VDC -48VDC-24V AC 240
    • Frequency:
    • Products Details
    • Company Profile
    • Introduction
    • Mainfeature
    • Application&scenarios
    • Specification
    • Parts/Warranty

     Kingtone Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low‐power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.




    Mainfeature

    Professional UHF 10W Bi-Directional Amplifier
    Main Features
    High linearity PA; High system gain;
    Intelligent ALC technology;
    Full duplex and high isolation from uplink to downlink;
    Automatic Operation convenient operation;
    Integrated technique with reliable performance;
    Bandwidth can be configured from 0.2-25MHz in work band.
    Local and remote monitoring (optional) with automatic fault alarm &remote control;
    Weatherproof design for all-weather installation;

    Application&scenarios

    VHF Walkie Talkie repeater Applications
        To expand signal coverage of fill signal blind area where signal is weak
    or unavailable.
       Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.
       Indoor: Hotels, Exhibition Centers, Basements, Shopping
    Malls, Offices, Packing Lots etc.
    It is mainly applicable to such case:
        The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than ‐70dBm;

        And can meet the requirement of antenna isolation to avoid self‐oscillation.



    Specification

    Technical Specifications

    Items

    Testing Condition

    Specification

    Meno

    Uplink

    Downlink

    Working Frequency(MHz)

    Nominal Frequency

    146-150MHz

    158-162 MHz

    The frequency can be specified by customer

    Bandwidth

    Nominal Band

    4MHz



    Gain(dB)

    Nominal Output Power-5dB

    45±3



    Output Power (dBm)

    modulating signal

    30

    40



    ALC (dBm)

    Input Signal add 20dB

    Po≤±1



    Noise Figure (dB)

    Working in-band(Max. Gain)

    ≤15



    Ripple in-band (dB)

    Nominal Output Power -5dB

    ≤3



    Frequency Tolerance (ppm)

    Nominal Output Power

    ≤0.05



    Time Delay (us)

    Working in-band

    ≤5



    Gain Adjustment Step (dB)

    Nominal Output Power -5dB

    1dB



    Gain Adjustment Range(dB)

    Nominal Output Power -5dB

    ≥30



    Gain Adjustable Linear(dB)

    10dB

    Nominal Output Power 5dB

    ±1.0



    20dB

    Nominal Output Power -5dB

    ±1.0



    30dB

    Nominal Output Power -5dB

    ±1.5



    Inter-modulation Attenuation (dBc)

    Working in-band

    ≤-45



    Spurious Emission(dBm)

    9kHz-1GHz

    BW:30KHz

    ≤-36

    ≤-36



    1GHz-12.75GHz

    BW:30KHz

    ≤-30

    ≤-30



    VSWR

    BS/MS Port

    1.5



    I/O Port

    N-Female



    Impedance

    50ohm



    Operating Temperature

    -25°C  +55°C



    Relative Humidity

    Max. 95%



    MTBF

    Min. 100000 hours



    Power Supply

    DC-48V/AC220V(50Hz)/AC110V(60Hz)( ±15%)



    Remote Monitoring Function

    Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power



    Remote Control Module

    RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery


    Parts/Warranty
    12 month repeater 6month for accessories .
