HOME > PRODUCTS >Yagi Antenna

Log-periodic antenna

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:KT-11L
• Product Category:Yagi Antenna
• Power supply:
• Frequency:885-909MHz/930-960MHz890-915MHz/935-960MHz1710-1785MHz/1805-1880MHz
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty

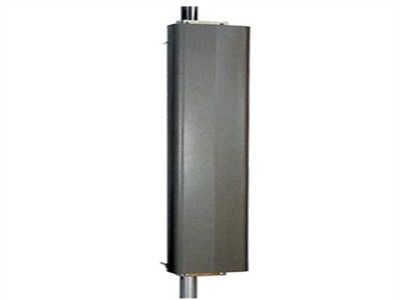

Log-periodic Antenna

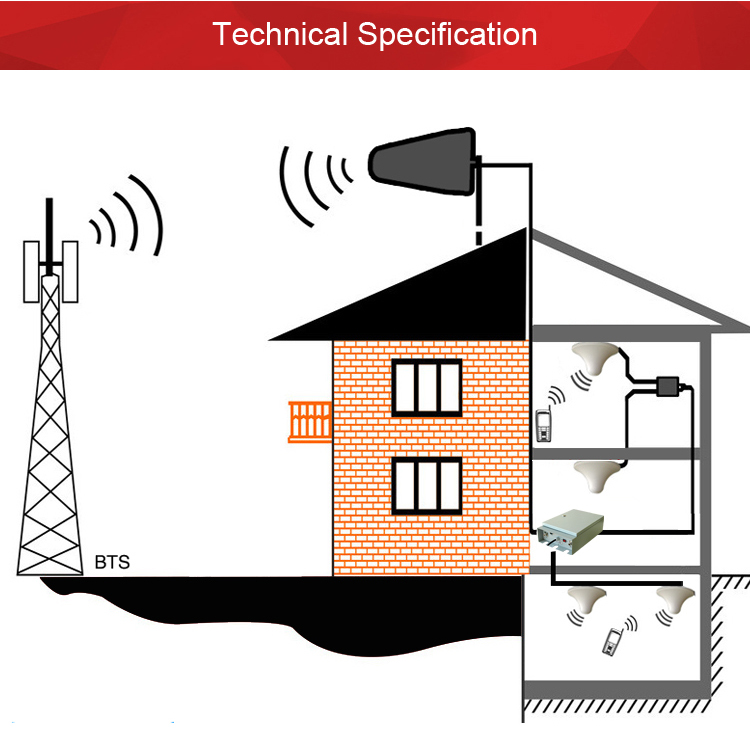

Distributed Antenna System (DAS) systems are used to distribute Cellular and WiFi signals throughout a building or area.

These wideband antennas eliminate the need to purchase different antennas for each frequency being used.

The Log Periodic antennas in this section are ideal for Distributed Antenna Systems (DAS) applications.

They feature high performance along with a multi-band operation.

Mainfeature

Exquisite appearance

Good defense ability

Impact resistance.waterproofing,anticorrosion,etc.

Optimized dimension

Designed with Broadband technology.

Medium gain

Low VSWR

Application&scenarios

Specification

ELECTRICAL SPECIFICATIONS


Frequency Range

806-960MHz & 1710-2600MHz

Gain

11±1dBi

V.S.W.R

<1.5

Input Impedance

50Ω

Horizontal Beam Width

65/60°

Vertical Beam Width

55/45°

Maximum Power Input-watts

100W

Polarization

Vertical

Lighting Protection

DC Ground

MECHANICAL SPECIFICATIONS

Connector Type

N-female

Radiating Element Material

Aluminum Alloy

Radome Material

ABS

Net Weight

1.2kg

Diameter

44*21*6cm

Radome Color

White

Parts/Warranty
Warranty: 12Months
■ Contact Us
E-mail:
Products: UHF Tetra 400MHz Repeater Fiber Optic Signal Amplifier
BDA widely used in trunking communication systems
Subject:
Message:
Quantity needed:
Verification:
■ Solution&Application
  • *Model : KT-PRP-B60-P43-B

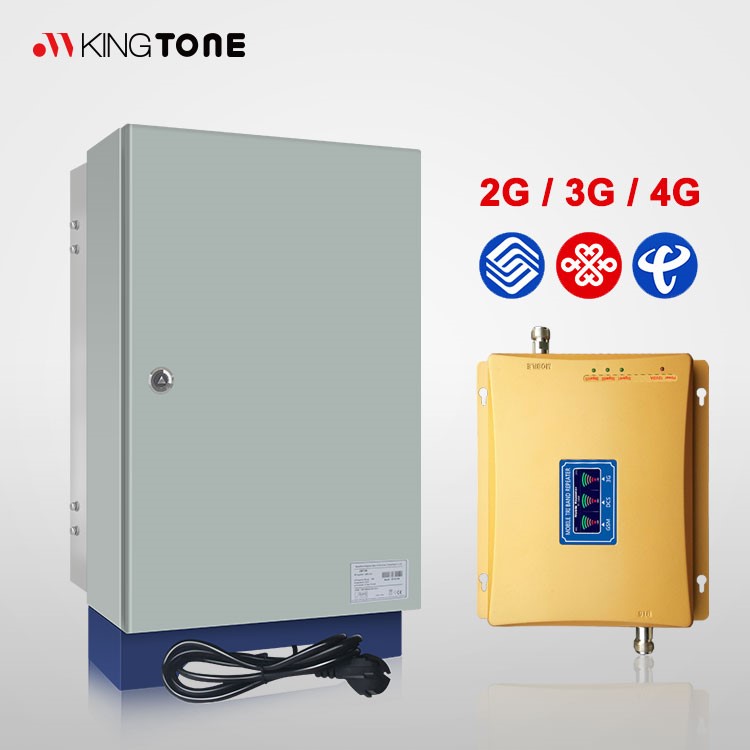

    *Product Category : 20W PCS1900MHz rf signal extender booster outdoor signal amplifier repeater

  • *Model : KT-TRP-B15-P33-B

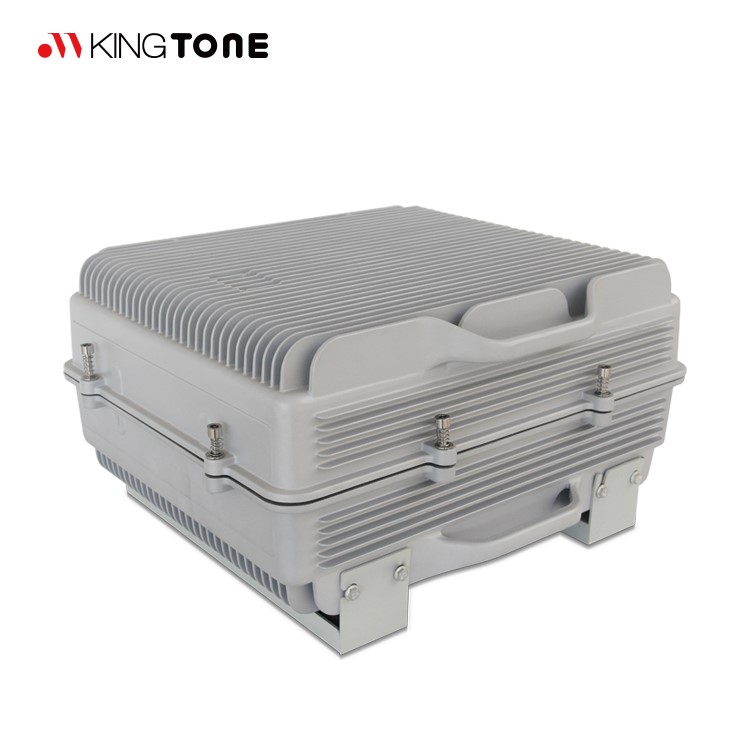

    *Product Category : 2W Tetra800MHz Band Selective Repeaters
