    30W Signal Network B5 850MHz Rural Repetidor Celular 95db Booster 2G 3G 4G Mobile Signal Repeater Amplifier Booster for Village, Mountain Coverage

    Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
    • mode:KT-LRP-B25-P45
    • Product Category:CDMA800/GSM850Mhz Repeater
    • Power supply:AC 110VAC 220VDC -48VDC-24V AC 240
    • Frequency:824 – 849MHz/869 - 894MHz
    • Products Details
    • Company Profile
    • Introduction
    • Mainfeature
    • Application&scenarios
    • Specification
    • Parts/Warranty

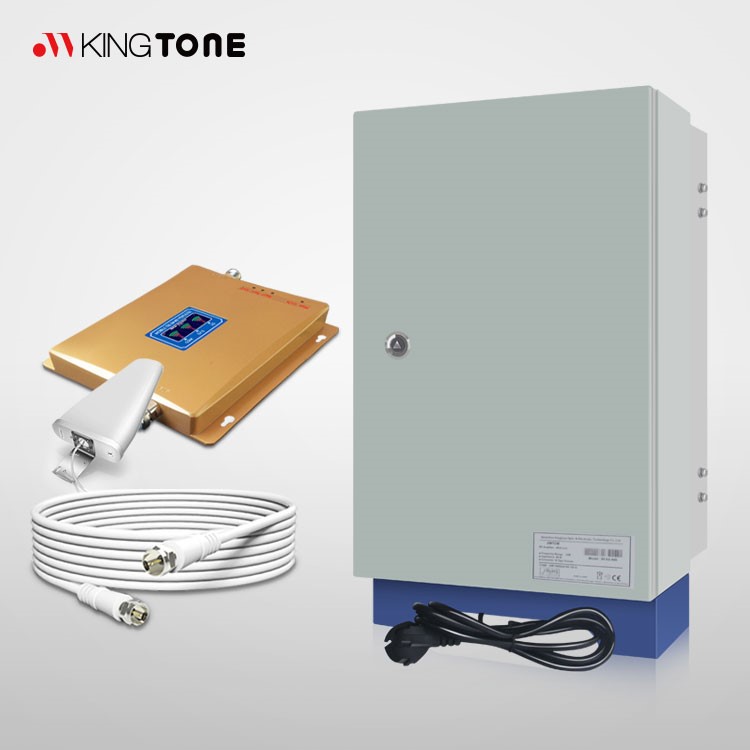

    850MHz 30W Band Selective Repeater（KT-LRP-B25-P45）

    Kingtone Repeaters system is designed to solve problems of weak mobile signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low‐power signal from BTS via radio frequency transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.

    Mainfeature

    Main Features


    ◇ High linearity PA; High system gain；

    ◇ Intelligent ALC technology；

    ◇ Full duplex and high isolation from uplink to downlink；

    ◇ Automatic Operation convenient operation；

    ◇ Integrated technique with reliable performance;

    ◇ Local and remote monitoring (optional) with automatic fault alarm &remote control;

    ◇ Weatherproof design for all-weather installation;

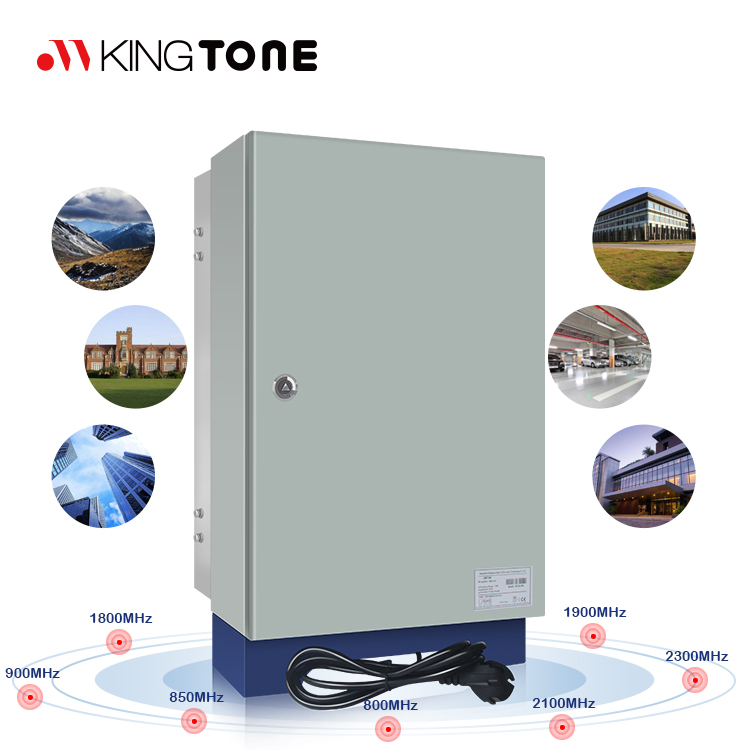

    Application&scenarios

    Applications

    To expand signal coverage of fill signal blind area where signal is weak or unavailable.

    Outdoor: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

    Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots etc.



    It is mainly applicable to such case:

    The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than ‐70dBm;

    And can meet the requirement of antenna isolation to avoid self‐oscillation.

    Specification

    Items

    Testing Condition

    Specification

    MEMO

    Uplink

    Downlink

    Working Frequency(MHz)

    Nominal Frequency

    824 – 849 MHz

    869 – 894 MHz

    3G

    Gain(dB)

    Nominal Output Power-5dB

    95±3



    Output Power (dBm)

    modulating signal

    +37

    +45



    ALC (dBm)

    Input Signal add 20dB

    △Po≤±1



    Noise Figure (dB)

    Working in-band（Max. Gain）

    ≤5



    Ripple in-band (dB)

    Nominal Output Power -5dB

    ≤3



    Frequency Tolerance (ppm)

    Nominal Output Power

    ≤0.05



    Time Delay (us)

    Working in-band

    ≤5



    ACLR

    Working in-band

    Compatible with 3GPP TS 36.143 and 3GPP TS 36.106

    For 3G, PAR=8

    Spectrum Mask

    Working in-band

    Compatible with 3GPP TS 36.143 and 3GPP TS 36.106

    For 3G, PAR=8

    Gain Adjustment Step (dB)

    Nominal Output Power -5dB

    1dB



    Gain Adjustment Range(dB)

    Nominal Output Power -5dB

    ≥30



    Gain Adjustable Linear(dB)

    10dB

    Nominal Output Power -5dB

    ±1.0



    20dB

    Nominal Output Power -5dB

    ±1.0



    30dB

    Nominal Output Power -5dB

    ±1.5



    Spurious Emission(dBm)

    9kHz-1GHz

    BW:30KHz

    ≤-36

    ≤-36



    1GHz-12.75GHz

    BW:30KHz

    ≤-30

    ≤-30



    VSWR

    BS/MS Port

    1.5



    I/O Port

    N-Female



    Impedance

    50ohm



    Operating Temperature

    -25°C ~+55°C



    Relative Humidity

    Max. 95%



    Power Supply

    DC-24V/AC220V(50Hz)/AC110V(60Hz)( ±15%)



    Power Consumption

    ≤250W



    Remote Monitoring Function(option)

    Real-time alarm for Door Status, Temperature, Power Supply, VSWR, Output Power



    Remote Control Module(option)

    RS232 or RJ45 + Wireless Modem + Chargeable Li-ion Battery


    Parts/Warranty
