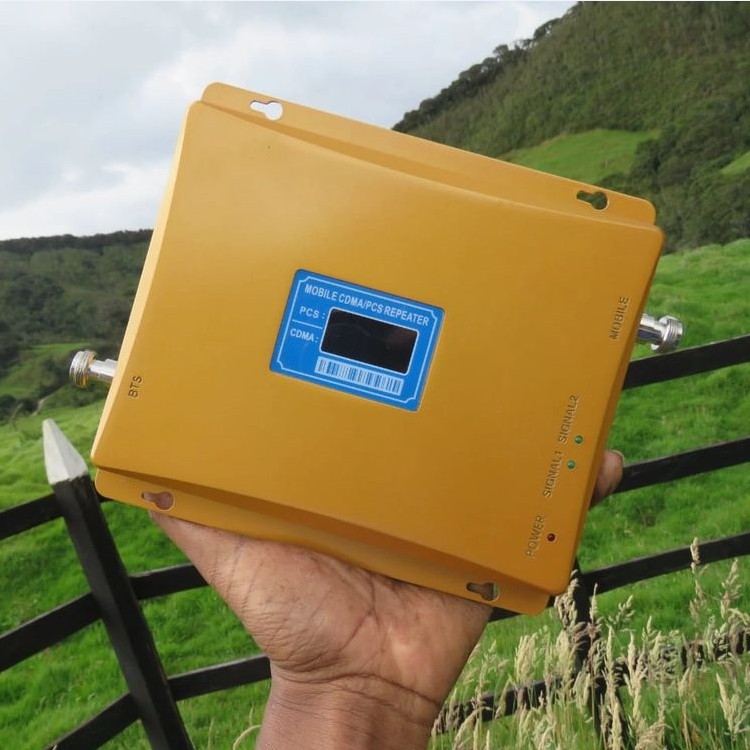

    Golden Mobile Signal Booster 3G 4G 2G Gsm Signal Booster Home Amplifier Indoor Lte Booster Repetidor Amplifier 850 1900

    Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
    • mode: KT-P23-G850 /1900
    • Product Category:Dual Band Booster
    • Power supply:AC 110VAC 220VAC 240
    • Frequency:1850-1910MHz/1930-1990MHz824 – 849MHz/869 - 894MHz
    • Products Details
    • Company Profile
    • Introduction
    • Mainfeature
    • Application&scenarios
    • Specification
    • Parts/Warranty

    Golden Mobile Signal Booster 3G 4G 2G Gsm Signal Booster Home Amplifier Indoor Lte Booster Repetidor Amplifier 850 1900 is specially apply to small area indoor antenna distributing system, via wireless connected method to import the base station signal to indoor coverage area, then send out the base station signal via indoor antenna. At the same time, the antenna receives the mobile phone signal and sends it to base station via distributing system uplink. By this way can availably eliminate indoor coverage blind areas, suppress interference and supply steady and reliable signal for indoor users, make indoor users enjoy high quality individual communication service. The Mobile Phone Partner is mainly used in indoor areas, to coverage signal blind areas.



    2G (GSM/GPRS/EDGE) and 3G (UMTS/HSPA) networks run on the same frequencies: 800 MHz and 1900 MHz. These frequencies are North America’s standard ones. Dual-band signal boosters can improve your AT&T reception by amplifying both of them.

    Customized Frequencies for your reference, choose 2-bands:
    B1 (2100) is Band 1 on 2100 MHz.
    B2 (1900) is Band 2 on 1900 MHz.
    B3 (1800) is Band 3 on 1800 MHz.
    B4 (AWS) is band 4 on AWS 1700/2100MHz.
    B5 (850) is band 5 on 850 MHz.
    B7 (2600) is Band 7 on 2600 MHz.
    B8 (900) is Band 8 on 900 MHz.
    B20 (800) is Band20 on 800MHz





    Mainfeature

    1. Enhance Mobile Phone Signal Strength
    2. Improve Communication Quality
    3. Reduce Cellphone Radiation
    4. Protract Cellular Battery Life
    5. Economic Building Cost
    6. Easy Operation
    7. Easy Installation
    8. Build-in Power Supply

    Application&scenarios



    Why need 2G 3G 4G Signal Repeater 850 1900MHz Mobile Phone Signal Booster Cell Phone Amplifier?

    Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save somebody’s life.

    Unfortunately, there are still some places where one can find themselves “out of coverage”.

    Usually those places are either too far from the cell phone base station or located inside underground constructions, for example:

    • Parking lots, tunnels
    • Big stores, office buildings
    • Cars, boats etc.
    • House in remote areas etc

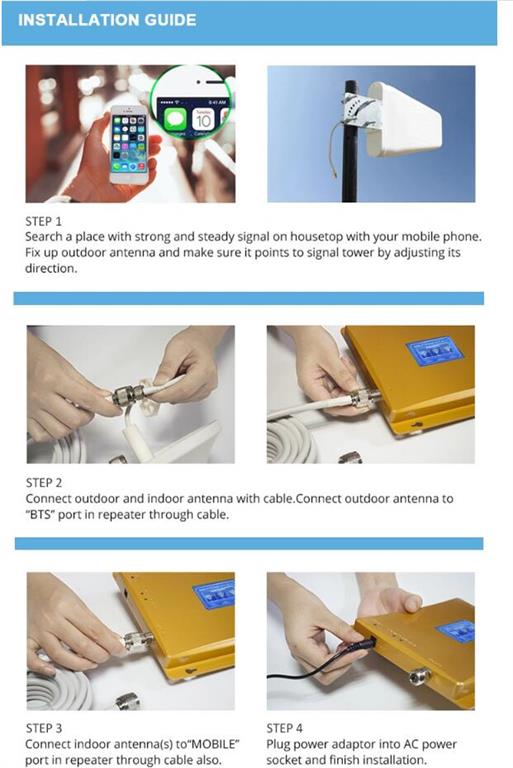

    Installation for gsm repeater 850 1900 :

    Step 1 Start by taking your phone up to the roof or other location outside to find where the signal is strongest.

    Step 2 Temporarily mount the Outdoor (outside) antenna in that location. You may need to adjust and move the antenna later.

    Step 3 Run coaxial cable into the building to a convenient loaction (attic, etc.) where you can also get standard power for the Signal Repeater.

    Step 4 Place the Signal Repeater in that location and connect the coaxial cable to the Outdoor Side of the Signal Repeater and the Outdoor antenna.

    Step 5 Mount your Indoor (inside) antenna in a productive location. You may need to adjust or move the antenna later. More notes on Indoor antennas and patterns here.

    Step 6 Connect coaxial cable between the Indoor antenna and the Signal Repeater output port.

    Step 7 Power up the system and check for signal inside the building. If needed, tune system by moving and or pointing the Outdoor and Indoor antennas until they get the most signal possible.

    Step 8 Secure all antennas and cables, securely mount the Signal repeater and clean up the installation.

    Of course there are still a few more things to consider but in general, this is the basic procedure. For more information, please contact us.


    Specification
    Technique Specification
    Model No
    		850/1900MHs Dual Band Signal Booster
    Parameter data
    Uplink
    Downlink
    Frequency Range
    CDMA
    824~849 MHz
    869~894 MHz
    PCS
    1850~1910 MHz
    1930~1990 MHz
    Output Power
    18 ±2dBm
    23 ±2dBm
    Gain
    65±2 dB
    70±2dB
    Ripple in Band
    ≤3dB
    Intermodulation Products
    9KHz~1GHz
    ≤ -36 dBm
    1GHz~12.75GHz
    ≤ -30 dBm
    Spurious Emission
    9KHz~1GHz
    ≤ -36 dBm
    1GHz~12.75GHz
    ≤ -30 dBm
    Noise Figure
    ≤ 6 dB
    VSWR
    ≤2
    Power Supply
    AC:100~240V, 50/ 60Hz;DC:12V 2A
    Power Comsumption
    < 10W
    Impedance
    50 ohm
    Mechanical Specification
    RF Connector
    N-Female
    Dimensions (D x W xH )
    235*182*21(mm)
    Weight
    ≤ 1.2Kg
    Operating Temperature
    -10℃ ~ 55℃
    Parts/Warranty
