    VHF 150MHz Circular Cavity Combiner

    Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
    • mode:Model: KT-VXX-HPCC-FXX
    • Product Category:Combiner / Diplexer
    • Power supply:
    • Frequency:
    • Products Details
    • Company Profile
    • Introduction
    • Mainfeature
    • Application&scenarios
    • Specification
    • Parts/Warranty

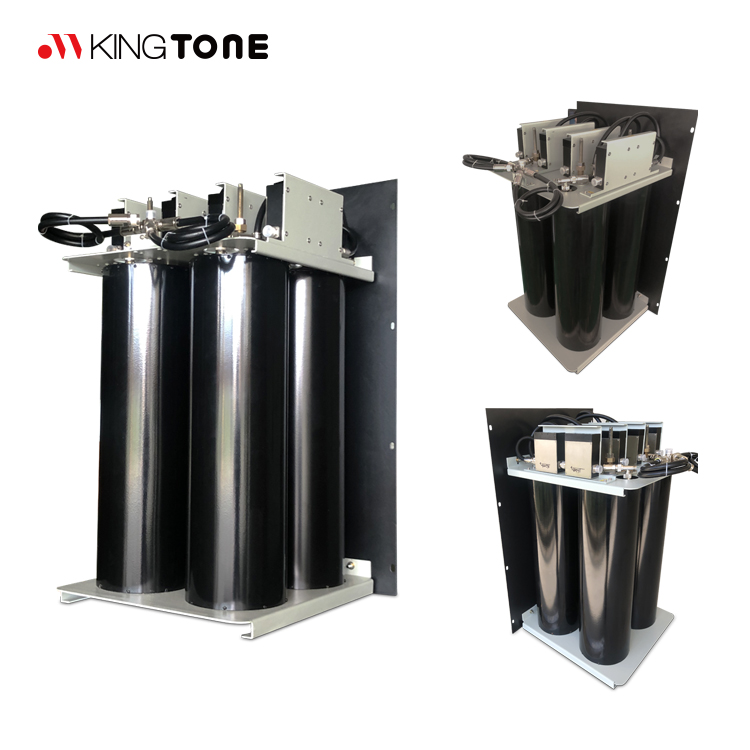

    Transmitter cavity combiner is widely used in general communication network relay station, all kinds of special and public mobile communication network. The application of transmitter cavity combiner can connect multiple base transmitters to one transmitting antenna, which not only saves the engineering cost of antenna, feeder and tower erection, but also more importantly: because this product adopts components such as high-Q cavity and circular isolator, it can better suppress the out of band noise and high-order harmonic of transmitter, improve the purity of transmitting spectrum and fundamentally improve The intermodulation interference problem which is difficult to solve in the multi antenna installation is solved.

    Mainfeature

    ◇ Frequency Range：130MHz～240MHz；

    ◇ Channel Number：2～8；

    ◇ Low Insertion Loss

    ◇ High Channel Isolation:≥80dB。

    ◇ High Isolation Between Antenna to TX port Port:≥70dB。

    ◇ Compact Size with 17U standard 16 inch Chassis




    Application&scenarios

    Applications

    Repeater system, BTS.

    Specification

    Frequency

    130~170MHz

    220~240MHz

    Model

    KT-V150-HPCC-F02

    KT-V150-HPCC-F04

    KT-V150-HPCC-F08

    KT-V230-HPCC-F02

    KT-V230-HPCC-F04

    KT-V230_HPCC-F08

    Product Name

    2 ways Channel combiner

    4 ways Channel combiner

    4 ways Channel combiner

    2 ways Channel combiner

    4 ways Channel combiner

    8 ways Channel combiner

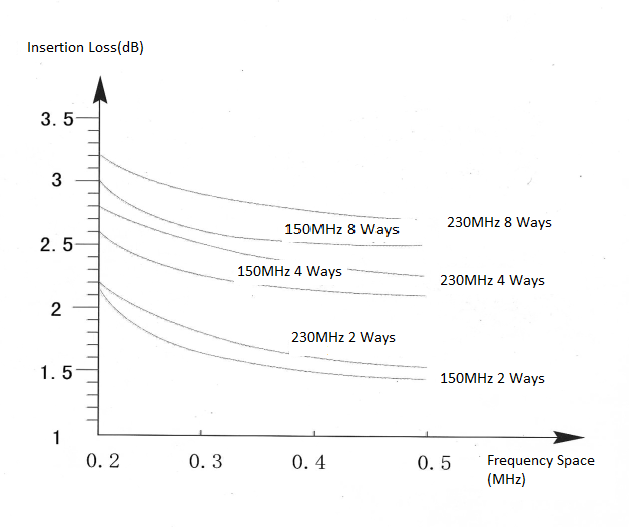

    Insertion Loss（Frequency space=200KHz）

    ≤2.2

    ≤2.7

    ≤3.4

    ≤2.3

    ≤2.8

    ≤3.5

    Insertion Loss（Frequency space=300KHz）

    ≤2.0

    ≤2.5

    ≤3.0

    ≤2.1

    ≤2.6

    ≤3.1

    Insertion Loss（Frequency space=500KHz）

    ≤1.8

    ≤2.3

    ≤2.8

    ≤1.9

    ≤2.4

    ≤2.9

    Frequency

    350~370MHz

    380~400MHz

    Isolation Between Channels

    ≥80dB

    Input Port VSWR

    ≤1.25

    Output Port VSWR

    ≤1.25

    Continuous input power

    >50W per channel

    Temperature Range

    -25～+65℃

    RF Connector Type

    Ｎ Type

    Dimension(mm)

    17U，19” standard chassis

    Parts/Warranty
    1 year warranty
