    65db 27dbm 3g Indoor wireless 900/2100mhz mobile signal booster repeater gsm signal receiver

    Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
    • mode:KT-TGW6527
    • Product Category:Dual Band Booster
    • Power supply:
    • Frequency:885-909MHz/930-960MHz890-915MHz/935-960MHz1850-1910MHz/1930-1990MHz1920-1980MHz/2110~2170MHz806 – 821MHz/851 - 866MHz2500-2570MHz/2620-2690MHz
    • Products Details
    • Company Profile
    • Introduction
    • Mainfeature
    • Application&scenarios
    • Specification
    • Parts/Warranty

    A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cell phones. A mobile phone repeater is ideal for house, home, office use.



    Mainfeature

    *Small size and Low Operating Temperature
    *Complete package - everything you need is in the box,very easy to install
    *Wireless operation - no connection to cell phone or data card
    *Works in any inside location where improved cellular signal is
    needed:homes,offices, buildings

    *CE authentication certificated

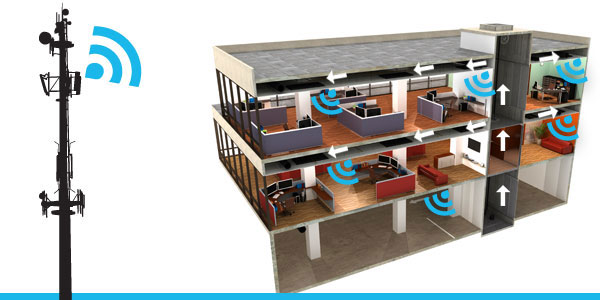

    Application&scenarios





    Specification

    Uplink
    Downlink

    GSM
    890-915MHZ
    935-960MHZ
    Frequency Range
    LTE
    2500~2570 MHz
    2600 ~ 2690 MHz
    DCS
    1710 ~ 1785 MHz
    1805~ 1880 MHz
    WCDMA
    1920-1980MHz
    2110-2170MHz
    Max .Gain
    ≥ 60dB
    ≥ 65dB
    Max .Output Power
    ≥ 15dBm
    ≥20dbm
    MGC ( Step Attenuation )
    ≥ 31dB / 1dB step
    Automatic Level Control
    ≥ 25dB
    Gain Flatness
    GSM & CDMA
    Tpy≤ 6dB(P-P); DCS,PCS ≤ 8dB(P-P)
    WCDMA
    ≤ 2dB/ 3.84MHz,Full Band ≤ 5dB(P-P)
    Spurious Emission &

    Output inter-modulation
    GSM Meet ETSI TS 151 026 V 6.1.0
    WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 )
    CDMA Meet IS95 & CDMA2000
    Noise Figure
    ≤ 4dB
    VSWR
    ≤ 2.0
    Group Delay
    ≤ 1.5μs
    Frequency stability
    ≤ 0.01ppm
    Impedance
    50 ohm
    I /O Port
    N-Female
    Operating Temperature
    -10ºC~+55ºC
    Power Supply
    INPUT:100-240VAC 50/60Hz OUTPUT:5V3
    Parts/Warranty
    12 months warranty.
