800-2700MHz 2 Way Cavity Power Splitter

Stadium /Office /Highway/ Railway /Scenic/ Pier /Island/ Offshore / Urban/ road /Supermarket /Metro/ Rural /Suburban/ Hospital/ Campus /Mine /Oilfield /Tunnel
• mode:KT-CPS-827-02
• Product Category:Power Splitter
• Power supply:
• Frequency:
  • Products Details
  • Company Profile
  • Introduction
  • Mainfeature
  • Application&scenarios
  • Specification
  • Parts/Warranty

The 800-2700MHz 2 Way Cavity Power Splitter will divide the signal strength from the repeater output into thirds and feed two indoor coverage antennas which you can locate in different areas.
Frequency Range 800-2700MHz which works with all bands:CDMA, GSM, DCS, PCS, 3G UMTS, 4G LTE for Cell Phone Signal Booster/Repeater;

Mainfeature

• Wide Frequency Band
• Compact, lightweight design
• Easy to mount
• High isolation, low insertion loss and minimal VSWR
• Excellent value - Superior performance at a competive price

Application&scenarios

1. Used by the RF designer in order to achieve equal distribution of RF signal within a certain network
deployment.

2. Widely used in in-Building DAS solutions.


Specification

Model No.:

KT-CPS-827-02

Frequency Range

800-2700MHz

Split Loss

3.0dB

Insertion Loss

0.3dB

VSWR max

1.25

PIM 3

-140dBc@2 x43dBm

Impedance

50Ω

RF Connector

N-F

Average Power

200W

Temperature

-20 ~ +70

Weight

0.18kg

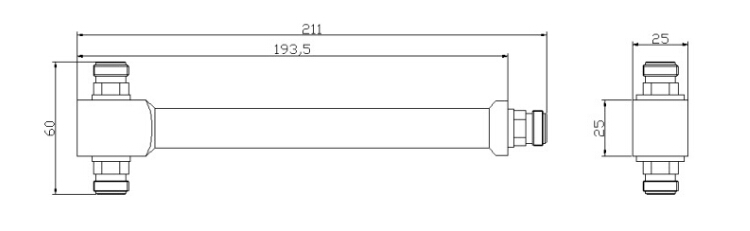

Dimension

211 * 60 * 25mm


Parts/Warranty
